Production Facility

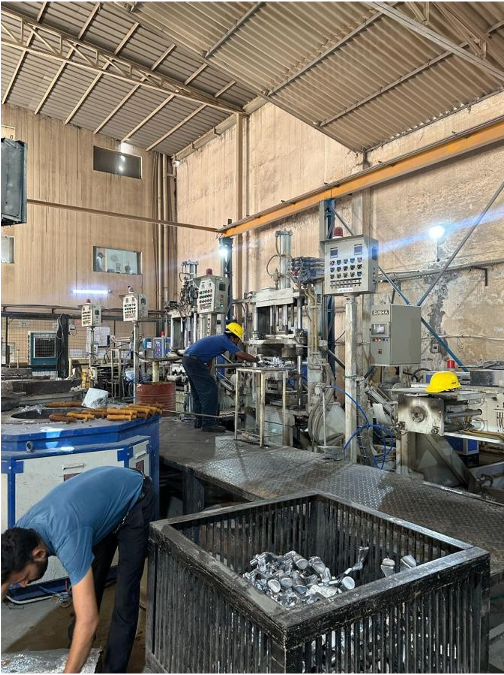

Melting & Holding furnace
- Make : Silcarb Recrystallized, Bangalore
- Type : Melting Cum Holding (Electrical)
- Qty : 4 Numbers
- Capacity : 300 Kgs – 2 Nos & 500 Kgs – 2 Nos
- Output : 500 Kgs/Hr Molten Metal or 12000 Kgs / Day

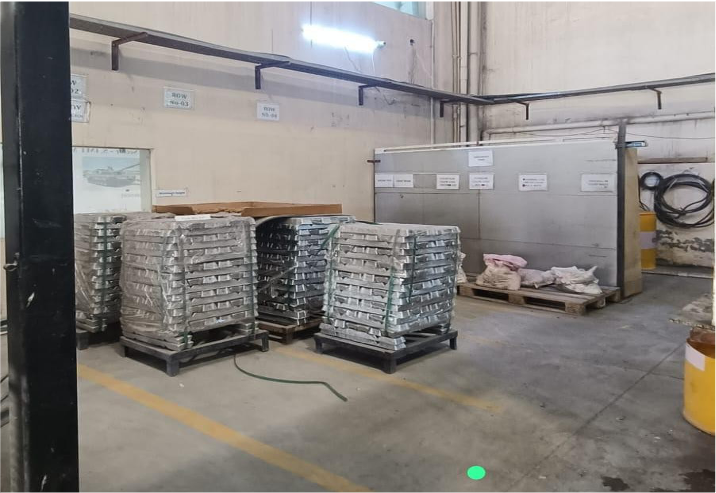

Raw material
- Supplier Domestic : Vedanta / BALCO, JSB Aluminum & Altruistic Metal
- Supplier Import : Qty : Hydro Aluminum South Asia PTE, Singapore (Qatalum, Qatar)
- Storage Capacity : 30MT with FIFO
- Type: A356.2

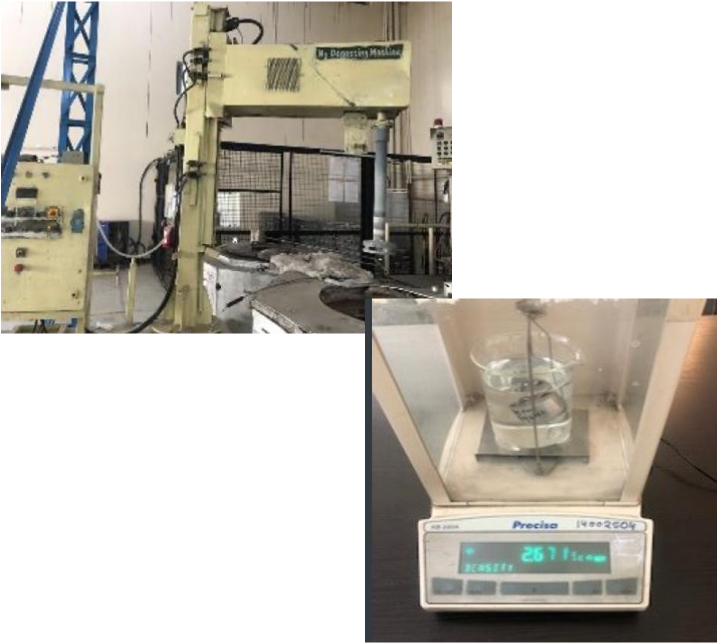

Degassing Machine & Density Meter
Make Degassing : Foseco India Ltd
- Type : Rotary with multi Location & multiple RPM (Fully Automatic)
- Input : Dry Nitrogen Gas
Density Meter Make : Precisa, Switzerland
- Model Number : XB 220A
- Frequency : each lot of Molten Metal
- Acceptance Density Criteria : > 2.60

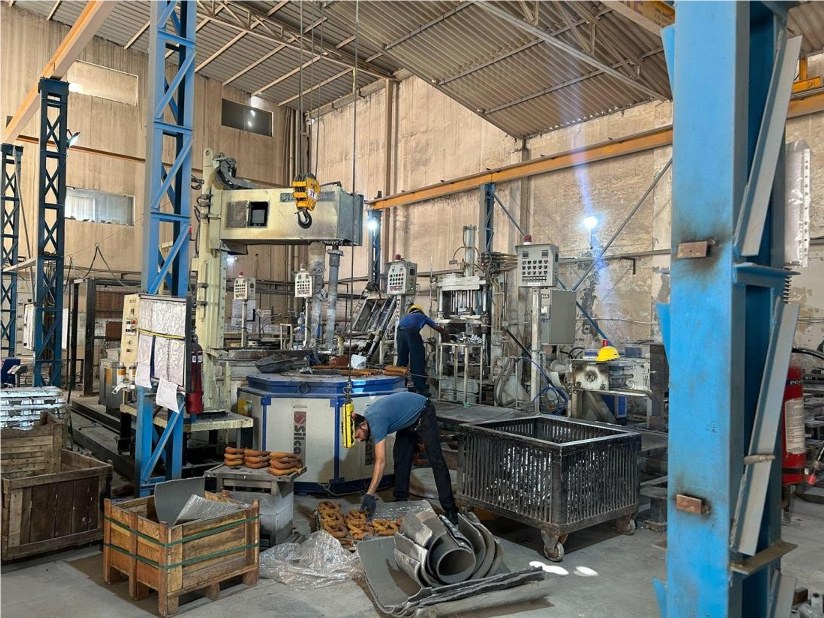

Gravity Die Casting Machine
- Make : Shusha Founders, Gujrat
- Type : 0 – 90 Degree with multi tilting speed & Automatic control with real time Tool Temperature Display on control Panel.
- Pattern Size : 800 X 600 mm
- Product Range : 0.100 ~15.00 Kgs
- Feature : Cycle Counter & Cycle
Time control with monitoring.

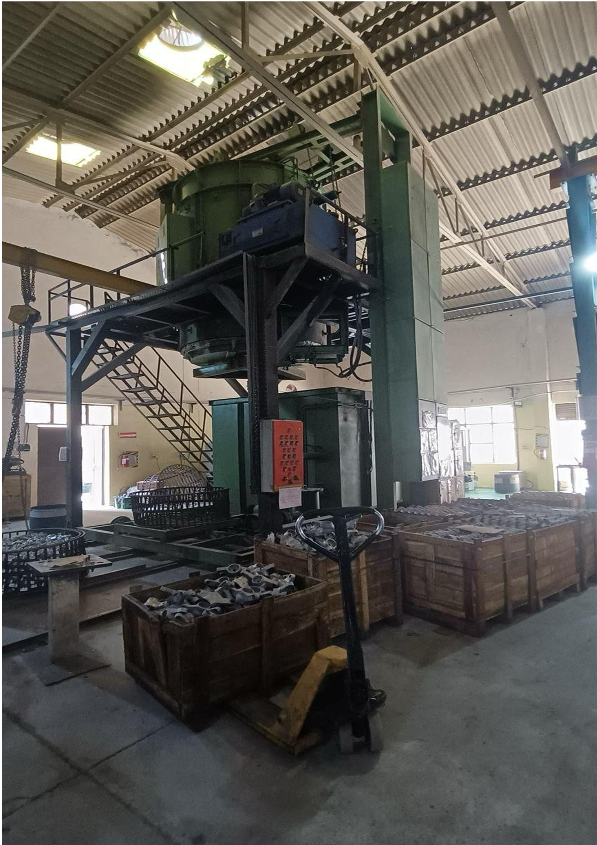

Heat Treatment Machine
- Make : ACME Furnaces, Faridabad
- Type : Solutionizing and Aging (T6)
- Control : SCADA Controlled
- Capacity : 1500 Kgs / Batch
- Quenching Delay : 9~15 sec
- Quenching Media: Water
- Water Tank : Countinuos water circulation system
- Special Feature : Fully Automatic
M/C

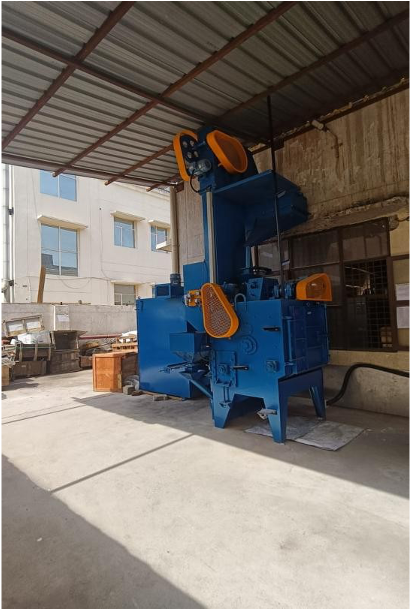

Shot Blasting Machine
- Make : Surface International , Jodhapur
- Type : Tumbler Type
- Control : PLCControlled
- Capacity : 140 kg / Batch
- Size Chamber : 20” X 27”
- Dust Collector : Fabric
- Dust Colletor Capacity : 1200 CFM
- Shots : SS 0.4 cut wire
Utility
Air Composure
- Make : Vinus
- Type : Magnetic
- Capacity : 250 CFM
- Suitability : With Air Dryer
Cooling Tower
- Make : Kwality Cooling
- Type : Air Flow
- Capacity : 100TR
- Suitability : All type of heat exchanger
Power Backup
- Make : Cummins India
- Type : Silent
- Capacity : 250 KVA
- Suitability : All type of Machine
